Proposed Title :
Low Power Full Swing Local 16 Bitline SRAM Architecture based on the 22nm FinFET TechnologyProposed System:
Several SRAM cell alternatives with a decoupled read port have been proposed for a low-voltage operation. The advantage of adding a decoupled read port is that it eliminates the tradeoff between the read stability and the write ability in the SRAM array to which the bit-interleaving is not applied; thus, the read stability and write ability can be optimized separately, facilitating a low-voltage operation. An SRAM cell is also susceptible to soft errors induced by α-particles; to address these errors, it is necessary for the SRAM array to exhibit bit-interleaving. Fig. 1 shows a bit-interleaved SRAM array architecture. In a bit-interleaved SRAM array, the selected cells are the SRAM cells targeted for the read or write operation. The row half-selected cells are the SRAM cells located on the selected row and the unselected column, whereas the column half-selected cells are the SRAM cells located on the unselected row and the selected column. During the write operation, the row half-selected cells are disturbed because of the selection of the wordline (WL) of the row half-selected cells. Thus, the stability of the row half-selected cells should also be considered in the SRAM design.
In this paper, the drawback of the average-8T SRAM architecture based on an advanced technology is analyzed, and a suitable SRAM architecture that overcomes this drawback is proposed. It should be noted that the proposed differential SRAM architecture can resolve the half-select issue without the need for a write-back scheme, and it exhibits a competitive area; it also exhibits a full-swing local bitline (BL) that enables a considerably smaller read delay than that of average-8T SRAM architecture.
Fig. 2 shows the average-8T SRAM architecture and its operational waveform. A block that stores four bits consists of four pairs of cross-coupled inverters, pass gate transistors (PGL1∼4 and PGR1∼4), block mask transistors (MASK1 and MASK2), write access transistors (WR1 and WR2), and read buffers (RD1∼4). A stacked nMOS structure is used as a read buffer to reduce the read BL (RBL and RBLB) leakage. It is important to note that the block select signal (BLK) and WLs (WL1∼4) are row-based signals, whereas the RBLs and write BLs (WBL and WBLB) are column-based signals.
- High area
- Operating voltage is high
The proposed differential SRAM stores multiple bits in one block, as in the case of an average-8T SRAM. Fig. 3 shows the architecture of the proposed SRAM that stores i bits in one block. The minimum operating voltage and area per bit of the proposed SRAM depend on the number of bits in one block. The basic configuration of the proposed SRAM includes four cross-coupled inverter pairs, pass gate transistors (PGL1∼4andPGR1∼4), block mask transistors (MASK1 and MASK2), write access transistors (WR1 and WR2), read buffers (RD1 and RD2), a head switch (P1), and cross-coupled pMOSs (P2 and P3). The head switch and cross-coupled pMOSs of the proposed SRAM are notable differences from the average-8T SRAM. WLs (WL1∼4), the block select signal (BLK), and the read WL (RWLB) are row-based signals, whereas the write WL (WWL), write BLs (WBL and WBLB), and read BLs (RBL and RBLB) are column-based signals.
The read operation of the proposed SRAM architecture is described in Fig. 7(a). This operation is performed in two phases. During the first phase, BLK of the selected block is forced to remain at 0 V, and the selected WL is enabled. On the basis of the stored data, although the voltage of the LBL that is connected to the 1 storage node becomes high, its value cannot be as high as that of the full VDD because of the Vth drop through the pass gate transistor, and the voltage of the other LBL remains low. The read operation in the first phase is similar to that of the average-8T SRAM, except that the RBL is not discharged because the RWLB is high in the first phase. With the assertion of WL, although the 1 storage node is disturbed, the read disturbance is small because of the small capacitance at the LBL. This smaller read disturbance makes the proposed SRAM be able to operate in significantly lower operating voltage compared with 6T SRAM cell. The second phase starts with the falling of the RWLB.
The write operation of the proposed SRAM architecture is shown in Fig. 8. As shown in this figure, BLK of the selected block is forced to remain at 0 V, and the selected WL is enabled. Further, the WWL is forced to remain at VDD so that the write access transistors are turned ON, and the WBLs are forced to remain at a certain voltage level on the basis of the write data. Both the storage nodes are connected to the WBLs through pass gate transistors and write access transistors. Thus, the write operation is differential, and the write ability of the proposed SRAM is better than that of the average-8T SRAM, whose write operation is single-ended.
- Reduce the power level
- Reduce the operating voltage

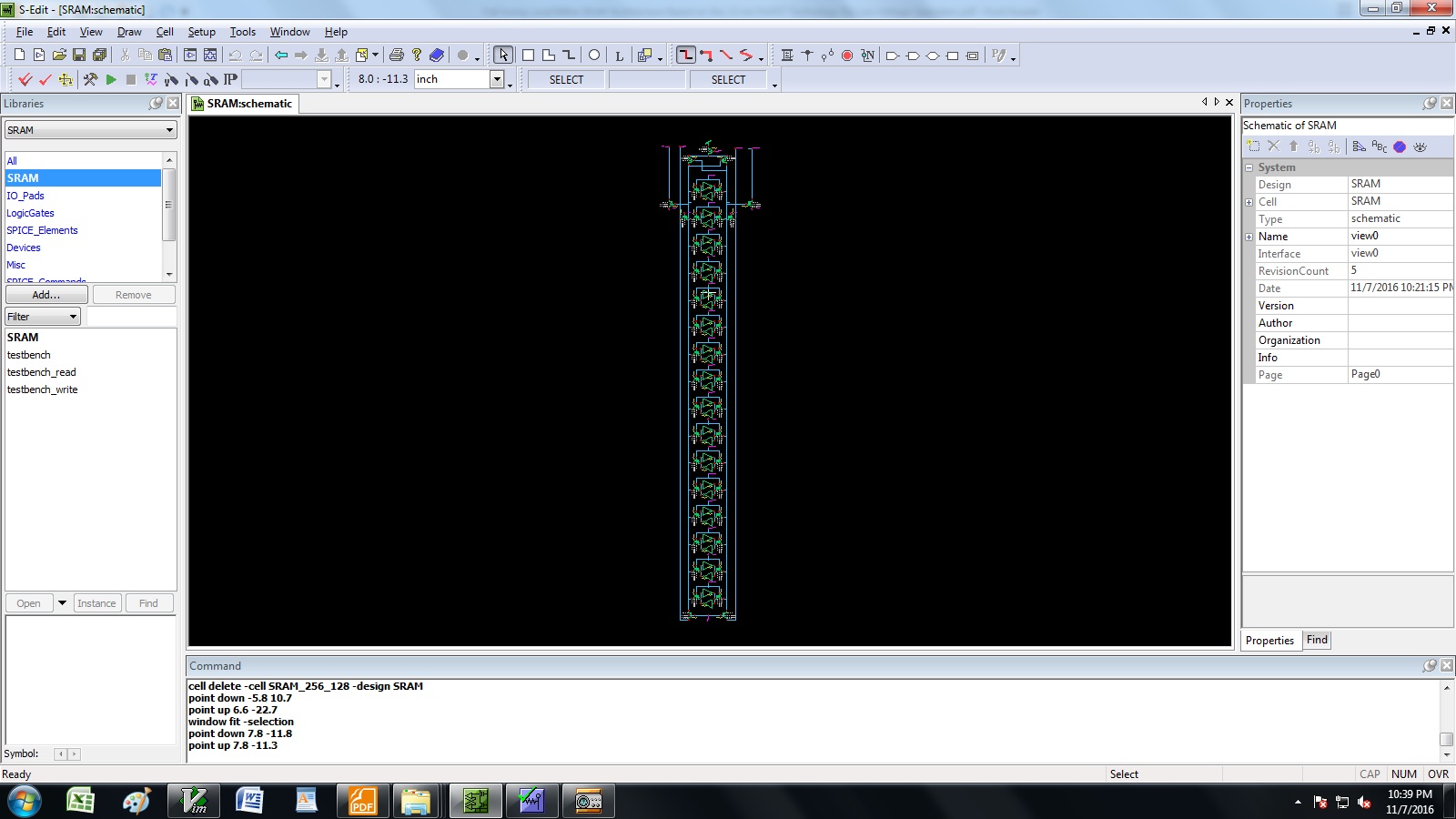

- Tanner tool
