Proposed Title :
Low Power and Highly Reliable 125 MHz Relaxation Oscillator using 45nm CMOS Technology
Improvement of this Project:
To Design this Relaxation Oscillator with 5 samples and improved gain using 45nm CMOS Technology and 0.6 Input Voltage and hence proved low area, power.
- TANNER EDA

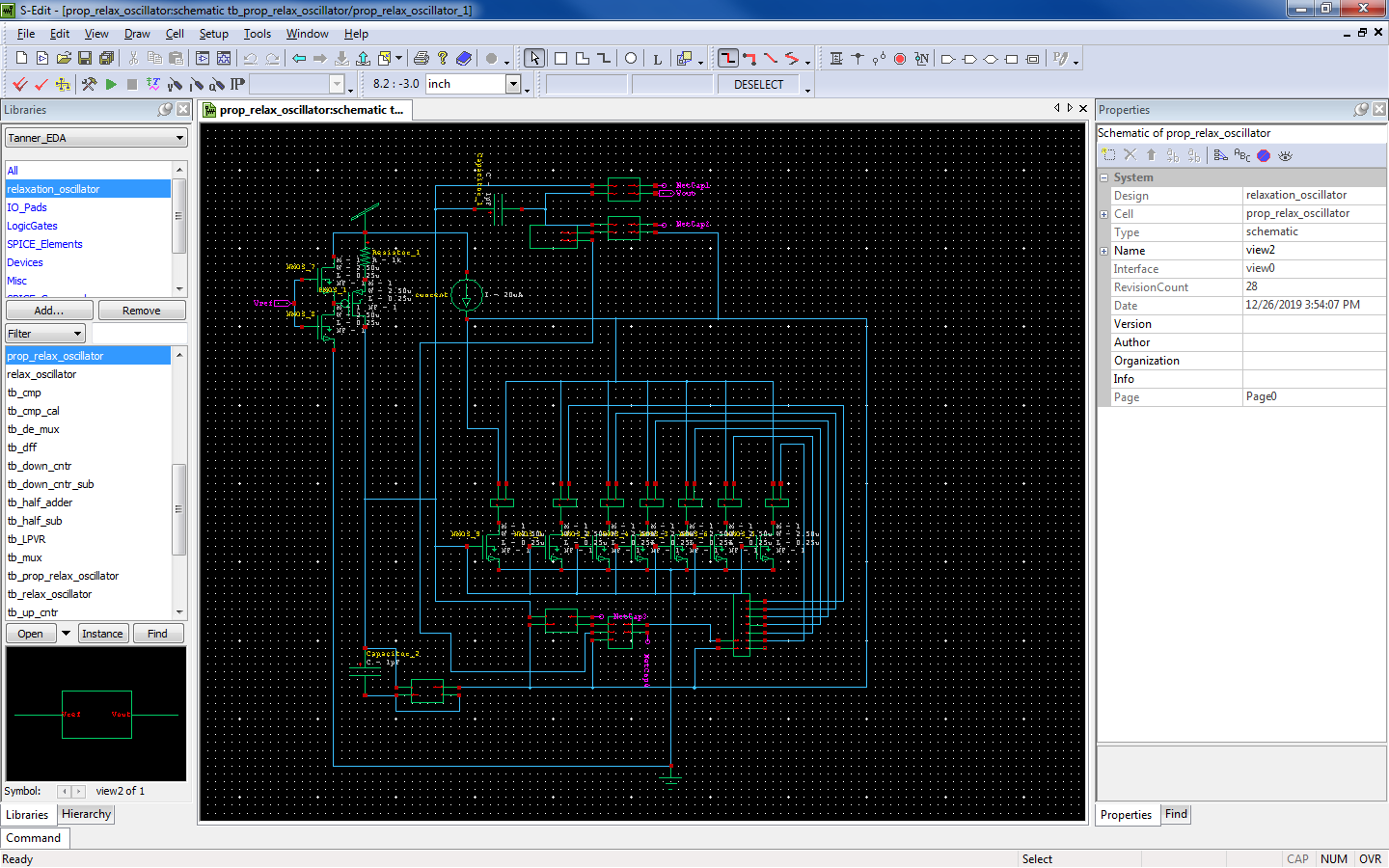

In this gadgets application of source of clock generation is a main priority one in today technology, such as wireless sensor nodes, Implantable Biomedical devices and Wearable Health monitoring systems. To realize an on-chip reference clock with phase noise and temperature stability are important performance indexes. This proposed relaxation oscillator is design in Tanner EDA tool at 45nm CMOS Technology under 0.6-V. The measured average of oscillation frequency with and without compensation are 125 MHz respectively. Finally hence proved the efficiency of all these parameters compared with existing 180 um relaxation oscillator.
” Thanks for Visit this project Pages – Buy It Soon “
A 13.4-MHz Relaxation Oscillator With Temperature Compensation
